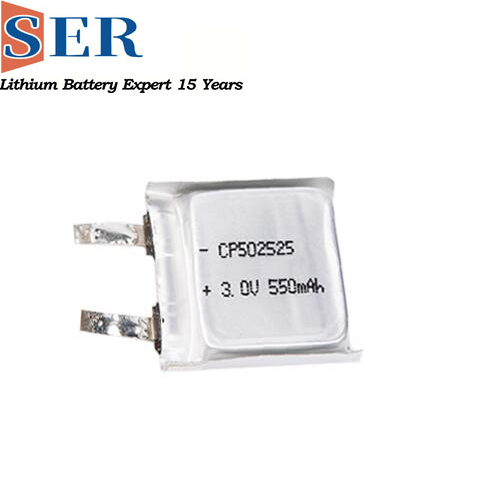

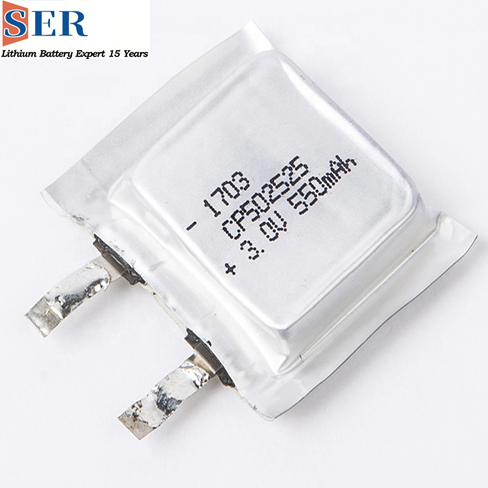

CP502525 Lithium Manganese Dioxide LiMnO2 Battery Ultra-thin Cell 3V CP502525 primary battery

LiMnO2 Ultra-thin Cell 3V CP502525 Battery

  • Model NO.:LiMnO2 Ultra-thin Cell 3V CP502525 Battery
  • Voltage:3.0V
  • Capacity:550mAh
  • Shape:rectangular, prismatic
  • Battery Size:5*25*25.mm
  • Brand:SER or OEM
  • Working temperature:-40℃~+60℃
  • Applications:RFID active card, Alarm or security equipment (smoke detector,alarm system), Asset tracking system(animal, container,person tracking), Medical equipment, Life Jacket Light

Ultra thin battery catalogue(图1)


CP502525 Lithium Manganese Dioxide LiMnO2 Battery Ultra-thin Cell 3V CP502525 primary battery






  Ultra thin Batteries


Excellent safety performance


● Once a safety hazard occurs, the liquid battery is easy to explode, while the polymer battery will only blow up at best.


Thin thickness, The shape can be customized


  Advantages


Ultra thin battery catalogue(图2)


● The thickness can be less than 0.4mm, which meets the needs of current wearable devices.

Light weight, small size

● The weight of polymer battery is 40% lighter than steel shell lithium battery of the same capacity and 20% lighter than aluminum shell battery.

High energy density

Wide Operating temperature range

Low Self-discharge rate

Excellent discharge and charge characteristics







                                                   TECHNICAL SPECIFICATIONS


Battery model: LiMnO2 Ultra-thin Cell 3V CP502525 BatteryCP502525.jpg

Battery brand: SER

Battery performance index

1. Battery capacity: (23±2℃, 10 mA/2.0V) 550mAh

2. Open circuit voltage: ≥3.0V

3. Cut-off voltage: 2.0V

4. Max Continuous working currents: 200mA

5. Max pulse working current: 400mA

6. Max dimension: 5.0*25*25mm

7. Operating temperature range: -20~+60℃

8. Battery storage life: 5 years (Storange: clean, below +20℃,  dry and ventilated.)

9. Jacket: Flexible Aluminum Foil Packaging



Warning:

Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.


Tag: CP502525, Lithium Manganese Dioxide, LiMnO2 Battery, Ultra-thin Cell, 3V CP502525, primary battery,primary soft pack battery,3.0v limno2 battery,li-mno2 battery,soft thin li-mno2 battery, thin li-mno2 battery,disposal manganese, thin battery, primary THIN battery,primary thin battery,Ultra thin cell, thin batteries,safety batteries,Primary Lithium Battery,Lithium Battery,Li-Mno2 battery


APPLICATIONS



Ultra thin battery catalogue(图4)

Main applications:


1. Nonstop charging system;                                                                 2. Intelligent parking lot ;


3. Container identification;                                                                     4. Life Jacket Light;


5. Mine personnel identification;                                                            6. Automated railcar identification management;


7. Automated road charge management;                                            8. Automated voyage passengers luggage identification transport management;


9. Vehicle entry and exit control;                                                           10. Asset tracking system(animal, container,person tracking);


11.RFID active card;                                                                              12.Alarm or security equipment (smoke detector,alarm system);


13.Animal identification(raising cattle, sheep, pigeon,etc);                     14.Automate management of logistic and storage;


15.Automobile remote control lock;                                                          16.Intellectualized door etc.
