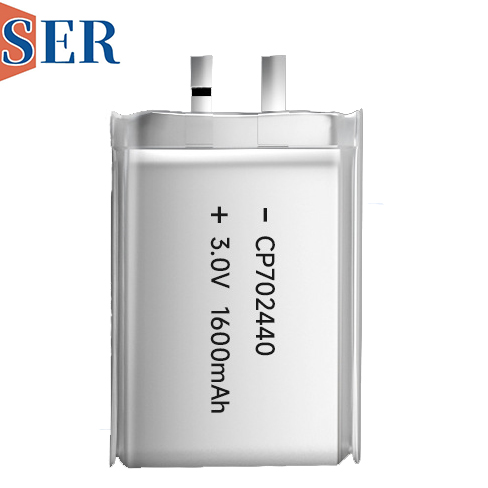

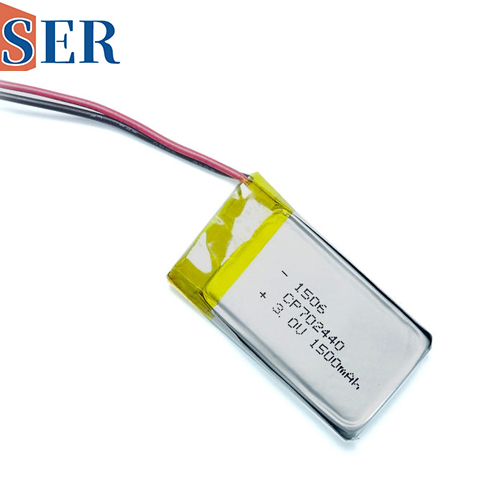

CP702440 3V 1500mah thin Li-MNO2 battery Soft pack lithium manganese battery with wires and connector

CP702440 3V 1500mah thin Li-MNO2 battery Soft pack lithium manganese battery with wires and connector

  • Model NO.:CP702440
  • Voltage:3.0V
  • Capacity:1500mAh
  • Shape:Square, prismatic, pouch
  • Battery Size:7*24*40mm
  • Brand:SER or OBM
  • Working temperature:-40℃~+70℃
  • Applications:RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card
Specification of CP702440 Soft pack lithium manganese battery:


Specification

Parameters

CP702440 Soft pack lithium manganese battery

Nominal

Voltage

 3.0V

Capacity

1500mAh @ 0.2C to 2.0 V @ 23° C

Dimension

7*24*40mm

Electrical

Constant Discharge Current

600mA

Max Discharge Current

1000 mA

Physical

Terminals/ Connector

Nickel Tabs, wire, plug or OEM

Others

Working Temperature

-20 +70℃

Storage Temperature

0~25℃

Applications

RFID reader,Personnel positioning card,GPS tracker,Portable listening device,RFID Tag,LoRaWAN devices, IoT,Animal identification,Smart Card

Tags

CP702440,Soft pack lithium manganese battery, CP702440 with wires and connector,thin Li-MNO2 battery,thin battery,Li-MNO2 battery


Features of CP702440 Soft pack lithium manganese battery:

1600mah.jpg1. High Energy Density;

2. High single cell voltage;

3. Light weight;

4. High security;

5. Stable operating voltage;

6. Wide Operating temperature range;

7. Low Self-discharge rate;

8. Restricted for UN38.3,ROHS and CE.

9. Most importmant: Greater Safety to meet customers' requirement for special applications.



One-stop Customized Service

What customized services can be provided according to customers' needs?

1. a) We provide customized services for LOGO, pattern, etc. required by you

2. b) We provide customized service for processingthe electric core into the terminal wire

3. c) We provide customized services for square lithium manganese battery cells, and design new batteries according to your proposed capacity, size, current, etc.

4. d) We provide customized services for battery packs. According to your design requirements for battery packs, we provide corresponding design schemes and sign a transaction order after you confirm the specifications.

5. e) We provide purchasing services, and we can provide relevant purchasing services according to your needs.


What SER customized services Advantages:

1.  Professional Manufacturing

Integrate R&D/ Production/sales

We provides complete solutions for your battery system according to your requirements - standard cells and custom packs, from simple cells to intelligent battery packs for the most demanding applications.

2. Customization

The proposal you submitted can be completed on time.

Our battery experts will be happy to advise you on which of these cells is best suited for your application. Equipped with the expertise from countless successfully completed projects, our experts will also find the perfect solution for your requirement profile and will advise you on request directly at your site.

3. Quick Sample

Normally 7 days quick sample time. 15-20 day mold-developing time

4. Delivery Guarantee

 Deliver goods on time according to the agreed time. By express,air or by sea are matured.

5. Complete Models

Battery stytles and models are complete.

3.6V Li-SOCL2 battery, Lithium Ion Battery,Li-Polymer Battery,3.0V Li-MnO2 battery,Battery Pack,customization battery

6. After-sales service

Professional customer service after-sales follow-up.

We follow up each customer's needs as a project, as a baby to take care.Sincerely hope each project will develop better and better, and we will work together to bring the products to market faster.


Battery Structure Diagram Display:

 Li-MnO2 Soft Batteries Structure Diagram Display








Applications:


 Widely used for :

1. Nonstop charging system;


2. Intelligent parking lot ;


3. Container identification;


4. Vehicle charge check;


5. Mine personnel identification;


6. Automated railcar identification management;


7. Automated road charge management;


8. Automated voyage passengers luggage identification transport management;


9. Vehicle entry and exit control;


10.Compus all-purpose card;


11.Repasting card and public transportation card;


12.Associator card, drive license card, and health(medical equipment)card;


13.Animal identification(raising cattle, sheep, pigeon,etc);


14.Automate management of logistic and storage;


15.Automobile remote control lock;


16.Intellectualized door etc.



If you want a custom size & capacity of lithium battery, it's also friendly for us.

Our experienced engineers and advanced technology will give you safe, excellent and fast design solution, giving your product a competitive edge over competitors.

All we do what we want to help you to start your good idea.
