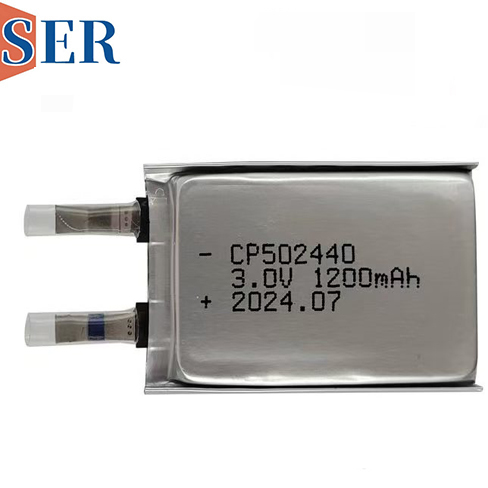

CP502440 LiMnO2 Soft Pack Battery with minimal self-discharge

The CP502440 lithium manganese dioxide (LiMnO2) soft pack battery stands out as a premium-grade power component, integrating ultra-low self-discharge rate, exceptional safety performance, extended shelf life, and large rated capacity. Tailored for 3V low-power electronic devices, this battery has been widely adopted in security monitoring equipment, industrial sensors, electronic price tags, smoke alarms, and various intelligent IoT terminals, delivering stable and durable power support for long-term unattended operation scenarios.

The Ultra Thin Battery is the perfect choice for those looking for a reliable and powerful LiMno2 battery. It is lightweight, thin, and offers a high-performance solution for a variety of embedded applications. With its one-year warranty and lightweight design, this battery is the ideal choice for those who need reliable power for their electronic devices.

Lithium Primary Li-MnO2 Soft Battery 1200mAh CP502440 Characteristic :

High Voltage, Nominal voltage up to 3.0 V

High Energy Density, Energy density up to 450Wh/kg

Wide Operating Temperature Range : -40°C to +70°C

Long Shelf Life

(Self discharge rate is less than 2% per year at room temperature )

No passivation effect, instant install-and-use, maintenance free

Ultra thin, Variable Design

(Variable dimensions can be selected to fit in the customer’s design

Custom batteries and battery packs are also available )

Greater Safety

The structure of the battery offers greater safety to meet customer’s requirement for special applications

Specification:

1. Max Dimension: 5*24*40mm

2. Nominal capacity: 1200mAh (1mA/2.0V)

3. Nominal voltage: 3.0V

4. Max constant discharge current: 120mA

5. Max pulse current: 800mA

6. Operating temperature range: -20°C~+60°C

Related thin cell modes:

CP042922 CP042345 CP0453730  CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850

CP224035 CP223045 CP224147 CP265045 CP264558 CP305050  CP401720 CP401922 CP405050 CP451728 CP502525 CP502440

CP503742 CP504644 CP505050 CP602026 CP701725 CP783970  CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V

What we offer:

1. Strictly quality control

2. First rate service

3. Professional technical advisory

4. Complete production base

5. Continuous supply guarantee

Main Applications :

1. RFID active card

2. Alarm or security equipment (smoke detector,alarm system)

3. Asset tracking system(animal, container,person tracking)

4. Medical equipment

5. Life Jacket Light

SER CP502440 Ultra Thin Li-MNO2 Battery from SER is the ideal solution for those who need a reliable, light weight, and flexible power source. The model number CP502440 is a LiMno2 Battery with a capacity of 1200mAh, and a weight of only 15g.  It is available in pouch, rectangular, and square shapes, making it easy to integrate into devices. It has a wide operating temperature range of -20℃ To +70℃ and a storage temperature range of -20℃ To +50℃. SER CP502440 Ultra Thin Battery is the perfect solution for those who need reliable power in a flexible, foil battery, thin battery, or ultra-thin battery form factor.

We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.

NO MOQ with fast lead time.

Welcome for any customized.

All we do what we want to help you to start your good idea.

Have not find a suitable battery for your prototype?

Let's talk about what SER experience can do for you!
