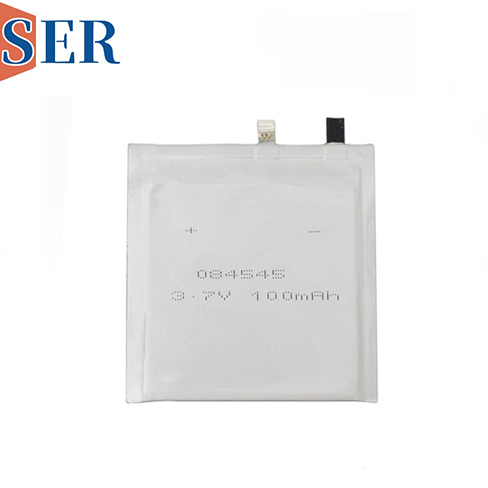

Ultra-Thin 1.5~2.0mm 3.7V 100mAh Card-Style Lithium Polymer Batteries

Ultra-Thin 1.5~2.0mm 3.7V 100mAh Card-Style Lithium Polymer Batteries: Redefining Power for Compact Electronics

Introduction

In the age of miniaturization, where electronic devices are becoming slimmer, lighter, and more portable, the demand for power solutions that can keep pace with these design trends has never been higher. From smart cards and wearable tech to miniaturized sensors and portable medical devices, the need for batteries that combine ultra-thin profiles, reliable performance, and compact footprints is paramount. Enter the ultra-thin 1.5~2.0mm LiPo battery pack—a game-changing power solution engineered to meet the stringent requirements of today’s compact electronics.

Specifically, the 3.7V 160mAh card-style lithium polymer (LiPo) batteries, available in model numbers 192840, 192858, and 202222, stand out as industry leaders in ultra-thin power delivery. These pouch-type ion batteries embody the perfect fusion of form and function: with thicknesses ranging from 1.5mm to 2.0mm, they fit seamlessly into space-constrained designs while delivering the consistent energy needed to power small-scale devices. Whether labeled as “ultra thin battery,” “card-style lithium polymer battery,” or “pouch ion battery,” these models have become the go-to choice for engineers, product designers, and manufacturers seeking to push the boundaries of compact device innovation.

This article provides a comprehensive exploration of the ultra-thin 1.5~2.0mm 3.7V 160mAh card-style LiPo batteries, covering their technical specifications, design innovations, performance characteristics, application versatility, safety features, manufacturing processes, quality control standards, and market impact. By delving into the unique attributes that make these batteries indispensable for modern compact electronics, we aim to offer a detailed resource for industry stakeholders, technology enthusiasts, and anyone interested in the future of portable power.

1. Technical Specifications: The Foundation of Ultra Thin battery Performance

1.1 Core Electrical Parameters

At the heart of the ultra-thin 1.5~2.0mm LiPo battery pack lies a set of carefully calibrated electrical specifications that balance power output with size constraints. The nominal voltage of 3.7V is the industry standard for lithium polymer batteries in consumer and industrial electronics, aligning perfectly with the operating requirements of most microcontrollers, sensors, and wireless communication modules used in compact devices. This voltage level ensures efficient power transfer without the need for additional voltage conversion, reducing energy loss and simplifying device design.

The 160mAh capacity is tailored to the energy needs of small-scale devices that prioritize standby time and intermittent use. Unlike high-capacity batteries designed for smartphones or laptops, these card-style batteries focus on delivering consistent, low-current power over extended periods. For example, a 160mAh battery can power a smart card with contactless communication capabilities for up to 6–12 months on a single charge, depending on usage frequency. This capacity is achieved through the use of high-energy-density LiPo cells, which store more energy per unit volume than traditional battery chemistries like nickel-cadmium (NiCd) or nickel-metal hydride (NiMH).

1.2 Physical Dimensions and Form Factor

True to their “ultra-thin” designation, these batteries feature a slim profile that sets them apart from conventional power solutions. The thickness range of 1.5mm to 2.0mm is a critical differentiator—thin enough to fit into devices like smart cards (which typically have a total thickness of 0.8mm to 1.8mm when integrated with other components) and slim wearables, yet robust enough to maintain structural integrity and performance.

The model numbers (192840, 192858, 202222) provide key insights into their dimensions, following the standard LiPo battery naming convention (length × width × thickness in millimeters):

• 192840: 19mm (length) × 28mm (width) × 4.0mm (thickness) – a slightly thicker variant, still within the ultra-thin category for larger compact devices.

• 192858: 19mm (length) × 28mm (width) × 5.8mm (thickness) – offering a balance of size and capacity for medium-sized compact electronics.

• 202222: 20mm (length) × 22mm (width) × 2.2mm (thickness) – the ultra-slim flagship model, ideal for the thinnest devices like credit card-sized sensors or wearable patches.

All models feature a card-style, pouch-type design, which is lightweight (typically weighing 3–5g) and flexible. The pouch casing is made of a multi-layered film (aluminum foil laminated with polymer) that provides protection against moisture, dust, and physical damage while minimizing weight and thickness. This form factor allows for easy integration into curved or irregularly shaped devices, giving designers greater flexibility in product development.

1.3 Battery Chemistry and Technology

The ultra-thin 1.5~2.0mm LiPo batteries leverage advanced lithium polymer technology, a variant of lithium-ion (Li-ion) batteries that uses a polymer electrolyte instead of a liquid or gel electrolyte. This choice of chemistry is pivotal to their ultra-thin design and performance:

• Polymer Electrolyte Advantage: Unlike liquid electrolytes, which require rigid casings to prevent leakage, polymer electrolytes are solid or gel-like and can be manufactured in thin, flexible layers. This eliminates the need for heavy metal casings, reducing the battery’s weight and thickness while increasing its flexibility.

• Electrode Materials: The cathode is typically composed of lithium cobalt oxide (LiCoO₂) or lithium iron phosphate (LiFePO₄), selected for their high energy density, stability, and compatibility with low-current operating profiles. The anode is made of graphite, which offers excellent conductivity and long cycle life.

• Energy Density: These batteries boast an energy density of approximately 120–150 Wh/kg, significantly higher than NiCd (40–60 Wh/kg) and NiMH (60–100 Wh/kg) batteries. This high energy density ensures that the 160mAh capacity is packed into a tiny, lightweight form, making them ideal for portable devices where every gram and millimeter counts.

2. Design Innovations: Balancing Thickness, Weight, and Performance

2.1 Thin-Film Manufacturing Techniques

The ultra-thin profile of these batteries is made possible by advanced thin-film manufacturing processes. Unlike traditional batteries, which are assembled using stacked or wound electrode layers, these LiPo batteries use precision thin-film deposition techniques to create electrodes and electrolytes with thicknesses measured in micrometers.

During production, the cathode, anode, and electrolyte are deposited onto a flexible substrate in thin, uniform layers. The cathode and anode layers are typically 50–100 micrometers thick, while the electrolyte layer is just 10–20 micrometers thick. These layers are then laminated together to form a single cell, which is sealed in the pouch casing. This manufacturing approach reduces the overall size of the battery while maintaining the necessary energy density and performance.

The use of flexible substrates also enhances the battery’s durability. Unlike rigid cylindrical or prismatic batteries, which can crack or break under pressure, these pouch-type batteries can withstand minor bending and flexing—an important feature for devices like smart cards, which are often carried in wallets or pockets and subjected to occasional pressure.

2.2 Lightweight Material Selection

Every component of the ultra-thin 1.5~2.0mm LiPo battery is engineered with weight reduction in mind. The pouch casing, as mentioned earlier, is made of a lightweight, multi-layered film that provides protection without adding unnecessary bulk. The electrodes and electrolyte are also optimized to minimize weight: the graphite anode is porous to reduce density while maintaining high conductivity, and the polymer electrolyte is formulated to be as thin as possible without compromising ionic conductivity.

The result is a battery that weighs just 3–5g—lighter than a standard paperclip. This ultra-lightweight design is a critical advantage for portable and wearable devices. For example, a wearable fitness patch that weighs just 10g would have its weight increased by 30–50% if equipped with a heavier battery, compromising user comfort and device usability. The low weight of these LiPo batteries ensures that compact devices remain unobtrusive and easy to carry.

2.3 Energy Density Optimization

One of the greatest challenges in ultra-thin battery design is balancing size and weight with energy density. The 1.5~2.0mm LiPo batteries address this challenge through a combination of material selection and structural optimization:

• High-Energy-Density Electrodes: The use of LiCoO₂ or LiFePO₄ cathodes and graphite anodes ensures that the battery stores maximum energy per unit volume. LiCoO₂, in particular, offers a high specific capacity (140–160 mAh/g), making it ideal for ultra-thin batteries where space is at a premium.

• Minimized Non-Active Components: The battery’s design minimizes the weight and volume of non-active components (such as the casing, substrate, and tabs). For example, the pouch casing is just 0.1–0.2mm thick, and the current collector tabs (used to connect the battery to the device) are made of thin copper or aluminum foil.

• Efficient Cell Configuration: The single-cell configuration (3.7V nominal voltage) eliminates the need for series or parallel connections between multiple cells, which would add complexity, weight, and thickness. This simplicity ensures that the battery’s energy density is maximized for its size.

The result is a battery that delivers 160mAh of capacity in a 1.5~2.0mm thick form factor—an achievement that would be impossible with traditional battery chemistries or manufacturing methods.

3. Performance Characteristics: Reliability and Durability for Compact Devices

3.1 Cycle Life and Longevity

Cycle life—the number of charge-discharge cycles a battery can undergo before its capacity drops to 80% of its original value—is a critical performance metric for rechargeable batteries. The ultra-thin 1.5~2.0mm LiPo batteries are designed to offer a cycle life of 300–500 cycles, a benchmark for high-quality LiPo batteries.

This longevity is achieved through several factors:

• High-Quality Materials: The use of grade A electrodes and electrolytes minimizes degradation over time. LiCoO₂ cathodes, for example, are known for their stability and long cycle life when operated within safe voltage ranges.

• Conservative Operating Parameters: The batteries are rated for a continuous discharge rate of 0.5C (80mA), which is well within the safe operating range for LiPo cells. This conservative discharge rate reduces stress on the electrodes and electrolyte, extending cycle life.

• Built-In Protection: Most models include a basic protection circuit module (PCM) that prevents overcharging, overdischarging, and short circuits—common causes of battery degradation.

For most applications, a cycle life of 300–500 cycles translates to several years of use. For example, a smart card that is charged once every three months would use approximately 4 cycles per year, meaning the battery could last 75–125 years. A wearable device that is charged once per week would use 52 cycles per year, resulting in a battery life of 5–9 years. This longevity reduces maintenance costs and environmental impact, making these batteries a sustainable choice.

3.2 Self-Discharge Rate

Self-discharge is the gradual loss of charge in a battery when it is not in use. For devices that require long standby times (such as smart cards, emergency sensors, or portable medical devices), a low self-discharge rate is essential. The ultra-thin 1.5~2.0mm LiPo batteries excel in this area, with a self-discharge rate of less than 2–3% per month.

This low self-discharge rate is made possible by the stable chemical composition of the polymer electrolyte and the high-quality electrodes. Unlike NiCd or NiMH batteries, which can lose 10–20% of their charge per month, LiPo batteries retain their charge for extended periods. For example, a fully charged 160mAh battery would retain approximately 155mAh after one month, 150mAh after two months, and 145mAh after three months of non-use. This ensures that devices are ready to use when needed, even if they have been idle for months.

3.3 Operating Temperature Range

The ultra-thin 1.5~2.0mm LiPo batteries are designed to operate within a wide temperature range, making them suitable for use in diverse environments. Typically, they can function reliably between -10°C and 60°C (-14°F and 140°F), with optimal performance between 0°C and 45°C.

• Low-Temperature Performance: At temperatures between -10°C and 0°C, the battery’s capacity may decrease by 10–20%, but it will still deliver sufficient power for most low-current applications. The polymer electrolyte’s flexibility prevents damage from freezing, unlike liquid-electrolyte batteries that can crack or leak in cold temperatures.

• High-Temperature Performance: At temperatures between 45°C and 60°C, the battery’s cycle life may be slightly reduced, but built-in thermal protection (discussed in Section 5) prevents overheating and damage. This makes the battery suitable for use in hot environments, such as outdoor wearables or industrial sensors deployed in high-temperature areas.

3.4 Charge and Discharge Efficiency

Charge efficiency refers to the percentage of energy input during charging that is retained and available for discharge. The ultra-thin 1.5~2.0mm LiPo batteries have a charge efficiency of approximately 90–95%, meaning that 90–95% of the energy used to charge the battery is converted into usable power. This high efficiency minimizes energy waste and reduces charging time.

Discharge efficiency, the percentage of stored energy that is delivered to the device during use, is also high—typically 85–90%. This ensures that most of the battery’s 160mAh capacity is available to power the device, rather than being lost as heat or internal resistance. For small devices with limited energy reserves, this efficiency is critical to maximizing runtime between charges.

The batteries support fast charging at a 1C rate (160mA), meaning they can be fully recharged in approximately 1–2 hours (depending on the charger). This fast charging capability is convenient for end-users, who can quickly recharge their devices and get back to using them.

4. Application Versatility: Powering the Future of Compact Electronics

The ultra-thin 1.5~2.0mm 3.7V 160mAh card-style LiPo batteries are versatile power solutions that can be integrated into a wide range of compact devices. Their slim profile, lightweight design, and reliable performance make them ideal for applications where space and weight are critical constraints. Below are some of the key application areas:

4.1 Smart Cards and Contactless Devices

Smart cards (integrated circuit cards) are one of the most common applications for ultra-thin LiPo batteries. Traditional passive smart cards rely on radio frequency (RF) energy from card readers to operate, but active smart cards—equipped with a battery—offer extended read ranges, enhanced functionality (such as biometric authentication, offline data storage, or Bluetooth connectivity), and the ability to operate in environments with weak RF signals.

The 1.5~2.0mm thickness and card-style form factor of these LiPo batteries make them perfect for integration into active smart cards. For example:

• Access Control Cards: Used in office buildings, hotels, and airports, these cards require long standby times and reliable performance. The 160mAh capacity and low self-discharge rate ensure that the card can operate for up to 12 months on a single charge.

• Public Transit Cards: Active transit cards can store travel history, support offline payments, and send real-time data to transit systems. The ultra-thin battery powers the card’s wireless communication module without adding bulk.

• Healthcare ID Cards: These cards can store patient data, medical records, and emergency contact information. The battery enables the card to transmit data wirelessly to hospital systems, even in areas with poor network coverage.

4.2 Wearable Technology

Wearable devices—such as fitness trackers, smartwatches, health monitors, and wearable patches—require power solutions that are slim, lightweight, and durable. The ultra-thin 1.5~2.0mm LiPo batteries meet these requirements, making them a popular choice for manufacturers of miniaturized wearables.

Examples of wearable applications include:

• Fitness Trackers: These devices monitor steps, heart rate, sleep patterns, and other health metrics. The 160mAh capacity can power a fitness tracker for 3–7 days on a single charge, depending on usage. The ultra-thin design ensures the tracker remains comfortable to wear during extended periods of physical activity.

• Wearable Medical Patches: Used to monitor vital signs (e.g., ECG, blood glucose, or body temperature), these patches require a battery that is thin enough to adhere to the skin without causing discomfort. The 1.5~2.0mm thickness and 3–5g weight make these LiPo batteries ideal for this application.

• Smart Jewelry: Devices like smart rings, bracelets, or necklaces that track activity or send notifications require a battery that is discreet and lightweight. The card-style LiPo battery can be integrated into the jewelry’s design without compromising its aesthetic appeal.

4.3 Miniaturized IoT Sensors

The Internet of Things (IoT) has driven the development of small, low-power sensors that can be deployed in large numbers to monitor environmental conditions, equipment performance, and user behavior. These “smart sensors” require batteries that are compact, lightweight, and capable of operating for long periods on a single charge.

The ultra-thin 1.5~2.0mm LiPo batteries are well-suited for IoT sensor applications:

• Environmental Sensors: Used to monitor temperature, humidity, air quality, or light levels in homes, offices, or industrial facilities. The 160mAh capacity and low self-discharge rate enable the sensor to operate for 6–12 months on a single charge.

• Asset Tracking Sensors: Deployed on packages, vehicles, or equipment to track location and movement. The ultra-thin design allows the sensor to be attached to small or irregularly shaped assets, while the long battery life reduces maintenance costs.

• Industrial Sensors: Used to monitor machinery performance, vibration, or pressure in factories or industrial settings. The battery’s wide operating temperature range and durability make it suitable for use in harsh industrial environments.

4.4 Portable Medical Devices

Portable medical devices—such as hearing aids, insulin pumps, and portable oxygen concentrators—require batteries that are small, lightweight, and safe. The ultra-thin 1.5~2.0mm LiPo batteries meet these requirements, making them a viable power source for certain types of portable medical devices.

Examples include:

• Hearing Aids: Miniaturized hearing aids require a battery that is small enough to fit into the ear canal or behind the ear. The 1.5~2.0mm thickness and 3–5g weight make these LiPo batteries ideal for this application.

• Portable Insulin Pumps: These devices deliver small doses of insulin to patients with diabetes. The ultra-thin battery powers the pump’s motor and control module, while the long cycle life ensures reliable performance for months.

• Emergency Medical Devices: Such as portable defibrillators or pulse oximeters, which require a battery that is lightweight and easy to carry. The 160mAh capacity provides sufficient power for emergency use, while the fast charging capability ensures the device is always ready.

4.5 Other Emerging Applications

As technology continues to evolve, new applications for ultra-thin batteries are emerging. The 1.5~2.0mm 3.7V 160mAh LiPo batteries are being integrated into a range of innovative devices, including:

• Smart Packaging: Packaging with embedded sensors that monitor product freshness, temperature, or tampering. The battery powers the sensors and a wireless transmitter, allowing manufacturers and retailers to track products throughout the supply chain.

• Electronic Shelf Labels (ESLs): Digital labels used in retail stores to display product prices and information. ESLs require batteries that can operate for years without replacement, and the ultra-thin LiPo battery’s long cycle life and low self-discharge rate meet this need.

• Miniature Drones and Robots: Small drones used for aerial photography or inspection, and tiny robots used for medical procedures or industrial maintenance, require lightweight batteries to maximize flight time or operating duration. The ultra-thin LiPo battery’s low weight and compact size make it a suitable power source for these devices.

5. Safety Features: Ensuring Reliable Operation in Compact Devices

Safety is a top priority for any battery, but it is particularly critical for ultra-thin batteries used in devices that are carried on the body (such as wearables and medical devices) or used in close proximity to users (such as smart cards). The ultra-thin 1.5~2.0mm LiPo batteries are equipped with a range of safety features to prevent accidents and ensure reliable operation.

5.1 Protection Circuit Module (PCM)

Most models of the ultra-thin 1.5~2.0mm LiPo batteries include a built-in Protection Circuit Module (PCM), a dedicated circuit that monitors and regulates the battery’s operation. The PCM provides the following key protections:

• Overcharge Protection: LiPo batteries can be damaged or catch fire if overcharged (voltage exceeding 4.2V). The PCM monitors the battery’s voltage and cuts off the charging current when the maximum safe voltage is reached. This prevents cell swelling, overheating, and thermal runaway.

• Overdischarge Protection: Overdischarging (voltage dropping below 3.0V) can permanently damage LiPo cells, reducing their capacity and cycle life. The PCM cuts off the discharge current when the battery’s voltage falls below the safe threshold, protecting the battery from irreversible damage.

• Short Circuit Protection: A short circuit (direct connection between positive and negative terminals) can generate excessive current and heat, leading to battery failure or fire. The PCM detects short circuits within milliseconds and cuts off the current, preventing damage to the battery and connected devices.

• Overcurrent Protection: The PCM limits the maximum discharge current to a safe level (typically 1C or 2C), preventing the battery from being damaged by high-current draws.

5.2 Thermal Protection

Lithium polymer batteries are sensitive to high temperatures, which can degrade their performance and pose safety risks. The ultra-thin 1.5~2.0mm LiPo batteries include thermal protection features to mitigate these risks:

• Positive Temperature Coefficient (PTC) Resistor: A PTC resistor is integrated into the battery to limit current flow when temperatures exceed a safe threshold (typically 80–90°C). As temperatures rise, the PTC resistor’s resistance increases, reducing current and preventing overheating.

• Thermal Fuse: A secondary thermal fuse is included as a fail-safe. If the PTC resistor fails or temperatures continue to rise, the thermal fuse melts, cutting off the circuit entirely. This prevents the battery from catching fire or exploding in extreme conditions.

5.3 Mechanical and Environmental Protection

The battery’s physical design also contributes to its safety:

• Pouch Casing Durability: The multi-layered pouch casing is resistant to punctures, tears, and moisture ingress. The aluminum foil layer provides a barrier against oxygen and moisture, preventing the electrolyte from decomposing and the battery from swelling.

• Flexible Design: The battery’s flexibility reduces the risk of damage from drops or impacts. Unlike rigid batteries, which can crack or break when dropped, these pouch-type batteries can absorb shock without compromising their internal components.

• Leak-Proof Construction: The polymer electrolyte is solid or gel-like, making it less prone to leakage than liquid electrolytes. The pouch casing is hermetically sealed using heat sealing, further preventing leakage.

5.4 Compliance with Safety Standards

The ultra-thin 1.5~2.0mm LiPo batteries meet a range of international safety standards, ensuring their reliability and user confidence. Key certifications include:

• UN38.3: A global standard for the transportation of lithium batteries, ensuring the battery is safe for air, sea, and land transport.

• IEC 62133: A standard for secondary lithium batteries used in portable applications, covering electrical, mechanical, and thermal safety.

• UL 1642: A safety standard for lithium batteries, specifying requirements for cell construction, overcharge protection, and short circuit resistance.

• CE: Compliance with European Union safety, health, and environmental standards, allowing the battery to be sold and used in the EU.

These certifications demonstrate that the battery has undergone rigorous testing to meet the highest safety standards, making it suitable for use in professional and consumer applications worldwide.

6. Manufacturing Process: Ensuring Quality and Consistency

The production of ultra-thin 1.5~2.0mm LiPo batteries requires precision, strict quality control, and adherence to industry best practices. Below is a detailed overview of the manufacturing process, from raw material sourcing to final assembly and testing.

6.1 Raw Material Sourcing

The quality of the battery begins with the selection of high-grade raw materials. Key components and their sourcing standards include:

• Electrodes: The cathode (LiCoO₂ or LiFePO₄) and anode (graphite) are sourced from reputable suppliers with ISO 9001 certification. These materials undergo rigorous testing to ensure consistent purity, particle size, and electrochemical performance.

• Electrolyte: The polymer electrolyte is formulated using high-quality lithium salts (e.g., LiPF₆) and polymer matrices (e.g., PVDF-HFP). The electrolyte is tested for ionic conductivity, stability, and compatibility with the electrodes.

• Pouch Casing: The multi-layered film (aluminum foil + polymer) is sourced from suppliers specializing in battery packaging. The film is tested for thickness uniformity, barrier properties, and heat-sealing strength.

• PCM Components: The Protection Circuit Module is built using high-quality electronic components (e.g., microcontrollers, MOSFETs, resistors) from trusted manufacturers like Texas Instruments or ON Semiconductor.

6.2 Electrode Preparation

The first step in the manufacturing process is the preparation of the cathode and anode:

• Slurry Mixing: The cathode material (LiCoO₂ or LiFePO₄) is mixed with a binder (e.g., PVDF) and a solvent (e.g., NMP) to form a homogeneous slurry. The anode material (graphite) is mixed with a similar binder and solvent.

• Coating: The slurry is coated onto a current collector (aluminum foil for the cathode, copper foil for the anode) using a precision slot-die coater. The coating thickness is controlled to within ±1 micrometer to ensure consistent energy density.

• Drying: The coated current collectors are dried in an oven at 120–150°C to remove the solvent, leaving a thin, uniform electrode layer.

• Calendering: The dried electrodes are passed through a calender to compress the electrode layer, increasing its density and improving conductivity.

6.3 Cell Assembly

Once the electrodes are prepared, they are assembled into a battery cell:

• Cutting: The cathode and anode sheets are cut into the desired size and shape using a laser cutter or die cutter. The size is determined by the battery’s model number (e.g., 19mm × 28mm for the 192840 model).

• Separator Placement: A thin polymer separator (typically 10–20 micrometers thick) is placed between the cathode and anode to prevent short circuits while allowing lithium ions to pass through.

• Stacking: The cathode, separator, and anode are stacked in a sandwich-like structure. For ultra-thin batteries, a single stack is used (as opposed to multiple stacks or wound configurations) to minimize thickness.

• Tab Welding: Current collector tabs (thin aluminum or copper foil) are welded to the cathode and anode using a precision spot welder. These tabs will later be connected to the PCM.

6.4 Pouch Sealing and Electrolyte Injection

The assembled cell is then sealed in the pouch casing and filled with electrolyte:

• Pouch Insertion: The cell stack is placed into the pouch casing, which is pre-cut to the appropriate size.

• Edge Sealing: The edges of the pouch are sealed using heat and pressure, leaving a small opening for electrolyte injection.

• Electrolyte Injection: The polymer electrolyte is injected into the pouch through the opening using a precision syringe. The amount of electrolyte is carefully controlled to ensure optimal performance.

• Final Sealing: After electrolyte injection, the opening is sealed using heat and pressure, creating a hermetically sealed battery cell.

6.5 Formation and Aging

The sealed battery cell undergoes a formation process to activate its electrochemical performance:

• Formation Charging: The battery is charged at a low current (0.05C–0.1C) to form a solid electrolyte interphase (SEI) layer on the anode. The SEI layer protects the anode from degradation and improves the battery’s cycle life.

• Aging: The battery is stored at room temperature for 24–48 hours to allow the electrolyte to fully soak into the electrodes and the SEI layer to stabilize.

6.6 PCM Integration and Final Assembly

The Protection Circuit Module is then integrated into the battery:

• Wiring: The PCM is connected to the cathode and anode tabs using high-temperature wiring. The connections are secured with solder or spot welding.

• Insulation: The connections are covered with heat-shrink tubing or insulation tape to prevent short circuits.

• Casing Finalization: The PCM is attached to the pouch casing using double-sided tape. The entire battery is inspected for physical defects (e.g., loose connections, damaged casing).

6.7 Final Testing and Quality Control

Every battery undergoes a comprehensive final test to ensure it meets all specifications:

• Electrical Testing: The battery is charged to full capacity and discharged at a 0.5C rate to measure its actual capacity. Voltage, current, and internal resistance are monitored throughout the cycle. Batteries that fall below 160mAh or have abnormal voltage behavior are rejected.

• Safety Testing: The battery is subjected to overcharge, overdischarge, and short circuit tests to verify the PCM’s functionality. The battery is also heated to 80°C to test thermal protection.

• Physical Testing: The battery’s dimensions, weight, and thickness are measured to ensure they meet the specified tolerances. The pouch casing is inspected for leaks, tears, or swelling.

• Environmental Testing: The battery is subjected to temperature cycling (-10°C to 60°C) and humidity testing (85% relative humidity at 45°C) to ensure it performs reliably in real-world conditions.

Batteries that pass all tests are labeled with key information (model number, voltage, capacity, serial number) and packaged for shipment.

7. Quality Control and Quality Assurance

To ensure consistency and reliability, the manufacturing process is governed by a strict Quality Management System (QMS) certified to ISO 9001:2015. Key quality control and assurance measures include:

7.1 In-Process Quality Control (IPQC)

IPQC inspectors monitor each stage of the manufacturing process to identify and correct defects early. Key checkpoints include:

• Raw material inspection (incoming quality control, IQC) to verify the quality of electrodes, electrolyte, and casing materials.

• Electrode coating thickness and uniformity checks.

• Cell stack alignment and tab welding quality inspections.

• Pouch sealing strength and electrolyte injection volume checks.

Inspectors use statistical process control (SPC) to track defect rates and identify trends. Any process deviations are documented and corrected immediately.

7.2 Final Quality Control (FQC)

As discussed in Section 6.7, every battery undergoes a final test before leaving the factory. FQC inspectors verify that all electrical, safety, and physical specifications are met. Batteries that pass all tests are labeled as “approved” and prepared for shipment.

7.3 Batch Testing

In addition to individual battery testing, random samples from each production batch are subjected to additional tests to ensure batch consistency:

• Cycle life testing (100 cycles to verify capacity retention).

• High-temperature storage testing (stored at 60°C for 30 days to test stability).

• Drop testing (dropped from 1.5 meters onto concrete to test durability).

Batch test results are documented and retained for quality traceability. If any batch fails testing, the entire batch is quarantined and reworked or discarded.

7.4 Quality Traceability

Each battery is assigned a unique serial number that tracks it throughout the manufacturing process. This serial number is linked to raw material batches, test results, and manufacturing dates, allowing for full traceability in the event of a quality issue. Customers can use the serial number to request warranty service or quality documentation.

8. Market Trends and Future Developments

8.1 Growing Demand for Ultra-Thin Batteries

The market for ultra-thin rechargeable batteries is expected to grow significantly in the coming years, driven by the increasing popularity of compact electronics such as wearables, IoT sensors, and active smart cards. According to a report by Grand View Research, the global lithium polymer battery market size is projected to reach $102.8 billion by 2030, with a compound annual growth rate (CAGR) of 12.3% from 2023 to 2030. Ultra-thin LiPo batteries like the 1.5~2.0mm 3.7V 160mAh model are expected to account for a growing share of this market, as manufacturers seek to miniaturize their devices without compromising performance.

8.2 Technological Advancements in Battery Design

As demand for ultra-thin batteries increases, manufacturers are investing in research and development to improve their performance, reduce their size and weight, and lower their cost. Key areas of innovation include:

• Higher Energy Density: Developing new electrode materials (e.g., silicon-based anodes, nickel-rich cathodes) and electrolyte formulations to increase the amount of energy stored in the same volume or weight. Silicon-based anodes, for example, have a specific capacity of 4200 mAh/g—far higher than graphite’s 372 mAh/g—meaning they could significantly increase the capacity of ultra-thin batteries.

• Faster Charging: Improving charge acceptance to reduce charging time. Researchers are developing new electrolytes and electrode coatings that enable faster lithium ion transfer, allowing ultra-thin batteries to be recharged in minutes rather than hours.

• Flexible and Stretchable Designs: Creating batteries that can bend or stretch without losing performance. This would enable new applications in wearable tech (e.g., stretchable fitness bands) and flexible electronics (e.g., foldable smart cards).

• Solid-State Technology: Replacing the polymer electrolyte with a solid electrolyte to improve safety, energy density, and cycle life. Solid-state lithium batteries are still in the early stages of commercialization, but they hold great promise for ultra-thin applications—they are leak-proof, non-flammable, and can be manufactured in even thinner form factors.

8.3 Emerging Application Markets

The 1.5~2.0mm 3.7V 160mAh LiPo batteries are poised to benefit from the growth of several emerging application markets, including:

• Smart Healthcare: The increasing adoption of wearable medical devices, remote patient monitoring systems, and implantable medical devices is driving demand for small, reliable batteries. Ultra-thin LiPo batteries are ideal for these applications, as they are lightweight, non-invasive, and can operate for long periods.

• Industrial IoT: The deployment of millions of smart sensors in factories, warehouses, and infrastructure to monitor equipment performance and environmental conditions is creating a large market for low-power, long-lasting batteries. The ultra-thin LiPo battery’s low self-discharge rate and wide operating temperature range make it suitable for this application.

• Contactless Technology: The shift toward contactless payments, access control, and identification is increasing demand for active smart cards, which require ultra-thin batteries to operate. As contactless technology becomes more widespread (e.g., in retail, transportation, and healthcare), the demand for these batteries will continue to grow.

8.4 Challenges and Opportunities

Despite the promising growth prospects, the ultra-thin battery market faces several challenges:

• Cost: Ultra-thin batteries are often more expensive to manufacture than traditional batteries, due to the use of advanced materials and precision manufacturing processes. This can limit their adoption in low-cost devices.

• Energy Density Limitations: There is a physical limit to how much energy can be stored in a small, thin battery. Manufacturers must balance size and weight with energy density to meet the needs of different applications.

• Safety Concerns: As batteries become smaller and more powerful, ensuring their safety becomes increasingly challenging. Manufacturers must continue to invest in safety features and testing to address these concerns.

However, these challenges also present opportunities for innovation. By developing new materials, manufacturing processes, and safety technologies, manufacturers can overcome these limitations and unlock new applications for ultra-thin batteries. For example, the development of solid-state technology could significantly improve energy density and safety, making ultra-thin batteries suitable for even more demanding applications.

9. Conclusion

The ultra-thin 1.5~2.0mm 3.7V 160mAh card-style lithium polymer battery represents a significant advancement in power solutions for compact electronics. With its slim profile, lightweight design, reliable performance, and robust safety features, it has become a preferred choice for a wide range of applications, including smart cards, wearables, IoT sensors, and portable medical devices.

This battery’s success is a testament to the importance of balancing size, weight, performance, and safety in the design of power solutions for miniaturized electronics. By leveraging advanced thin-film manufacturing techniques, high-quality materials, and strict quality control processes, manufacturers have created a battery that meets the stringent requirements of today’s compact devices while paving the way for future innovations.

As the demand for small, powerful, and reliable electronics continues to grow, the ultra-thin 1.5~2.0mm LiPo battery will play an increasingly important role in enabling the next generation of technology. Whether powering a contactless payment card, a wearable fitness tracker, or a miniaturized IoT sensor, this battery is redefining what’s possible in compact device design, proving that big things can indeed come in small packages.

For engineers, product designers, and manufacturers, this battery offers a versatile, high-performance power solution that can help bring innovative compact devices to market. For end-users, it ensures that their favorite devices are lightweight, durable, and capable of delivering the performance they need—all while maintaining the safety and reliability they expect. As technology continues to evolve, the ultra-thin 1.5~2.0mm 3.7V 160mAh card-style LiPo battery will remain at the forefront of ultra-thin battery innovation, driving progress in compact electronics for years to come.
