LiMnO2 battery Catalogue

High power primary battery, CR battery,no passivation primary battery ,LiMnO2 battery,3.0V lithium battery,thin battery, CP battery

  • Model NO.:CR battery
  • Voltage:3.0v
  • Capacity:200~35000mAh
  • Shape:Cylindrical
  • Battery Size:A,AA,AAA,B,C,D,DD,etc
  • Brand:SER or OEM
  • Working temperature:-40°C~+85°C
  • Applications:Meter,Detectors,Electronic Toll Tags, AMR (Automated Meter Reading), Law Enforcement (RFID); Medical Electronics, Memory Backup, Tracking Systems;

Li-SOCL2 Batteries  Catalogue(图1)

CR battery,primary battery 3.0v,LiMnO2 battery,3.0V lithium battery,thin battery, CP battery,Li-MNO2 batteries,3V Lithium Battery,Lithium Manganese Dioxide battery,BATTERY CATALOGUE




LiMnO2 Battery Cylindrical


High Voltage


Norminal voltage up to 3.3V


No passivation effect


High Energy Density

FEATURES


Li-SOCL2 Batteries  Catalogue(图2)


● Energy density up to 270 Wh/kg

Stable Operating Voltage

● More than 90% of the capacity could be output at a stable voltage

Wide Operating Temperature Range

● -40°C to +85°C

Long Shelf Life

● Self discharge rate is less than 2% per year at room temperature

● Glass-to-metal seal

● Bobbin and spiral structure are available for different applications



                                              TECHNICAL SPECIFICATIONS



                                                                         Cylindrical Battery (Spiral)
Model

Normal

Voltage

Normal   CapacityDiameterHeightStandard Discharge   CurrentMax. Current (mA)Weight
NO.IEC SizeV mAhmmmmmAContinuousPulseg
CR142501/2AA360014.5251500100010
CR143352/3AA390014.533.51800150014
CR14505AA3150014.550.511000200021
CR2380015.5271800150013
CR173352/3A315001734.511500300020
CR1745032200174511500300026
CR17505A325001750.511500300030
CR185053280018.550.511500300035

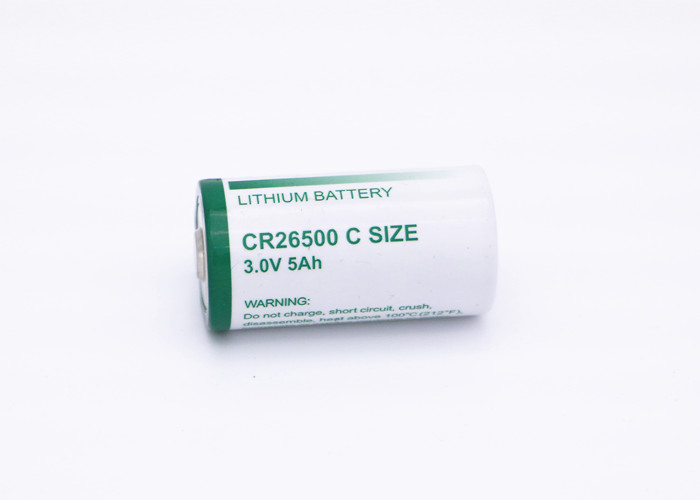

CR26500C35000265012000300062
CR34615D3110003461.51020003000125
CR-P26150035.8*19.5*34.811500300042
CR123A123A315001734.511200250016
CR341245DD32300034.2124.52020003000270










                                                         Cylindrical Battery (Bobbin)
ModelNormal VoltageNormal   CapacityDiameterHeightStandard Discharge   CurrentMax. Current (mA)Weight
NO.IEC SizeV mAhmmmmmAContinuousPulseg
CR14250SE1/2AA3110014.52512010010
CR14505SEAA3240014.550.515020019.5
CR123ASE123A321001734.512010020




APPLICATIONS


Li-SOCL2 Batteries  Catalogue(图2)

            Meter & AMR (Automated Meter Reading), Utility Metering;  Medical Electronics, Memory Backup, Tracking Systems;


          Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices; Remote Monitory Systems, Electronic Toll Tags,

          Scientific Instruments and Military Radio Stations;


           Portable Communication Equipment and other electric powered devices requiring small size, high power batteries.



Li-SOCL2 Batteries  Catalogue(图3)
