CR14250 CR1/2AA Size 3.0V LiMnO2 Battery Primary Lithium Battery

CR14250 CR1/2AA 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery PLC Battery

  • Model NO.:CR14250SE
  • Voltage:3.0V
  • Capacity:1050mAh
  • Shape:cylindrical
  • Battery Size:1/2AA size
  • Brand:SER or OEM
  • Working temperature:-40~+85℃
  • Applications:Utility metering,Memory back-up,Alarms and security devices,Automotive electronics,Tollgate systems,Military electronics,Automatic meter reading

Detailed Product Description


Battery Type: 1/2AA SizeVoltage:3.0V
Capacity:1,050mAhChemical System:LiMnO2
Size:Ø14.5*25mmShelf Life:10 Years
Application1:Electronic meterApplication2:Detectors
Application3:Portable Communication EquipmentApplication4:Didital camera
Shape:Cyclindrical

High Light:

 CR14250 CR1/2AA size 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery PLC Battery


CR14250 CR1/2AA 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery PLC Battery





Technical specifications:



Battery TechnologyLithium Manganese battery/ LiMNO2
Battery structureHigh capacity type
Nominal Voltage3.0V
Nominal Capacity1050mAh
Open circuit voltage3.1V (at +20°C)
Cut off Voltage2.0V
Max. Constant Current15mA
Max. Pulse Current100mA
Operating Temperature-40°C~+85°C
Storage Life≥10 years
Self – Discharge Rate:<1% per year
External Diameter (Max)14.5mm
External Height (Max)25mm
Weights10g






















Features



1.High continuous discharge current and current pulses.
2.High energy density, 260Wh/Kg.
3.Open circuit voltage above 3.2V for single cell.
4.Wide range of operating temperature(-40°C~+85°C).
5.Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6.Long operating time (over 8 years) for continuous low current discharge with high current pulses.
7.Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).



Application

The battery have wide applications:

Utility water/ Gas Meter, smart locks, Automatic Meter Reading;

Medical EquipmentCMOS memory backup, Tracking Systems,Remote Monitory Systems;

Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;

Scientific Instruments, Portable Communication Equipment, Military Radio Stations;

and other electric powered devices requiring small size, high power batteries.

C Size 3.6V Er 6500mAh ER26500M Lithium Primary Battery 0


Packaging & Shipping



Packing:

Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.



Shipping:

Leadtime is 3-20 working days for normal orders.



Pictures:

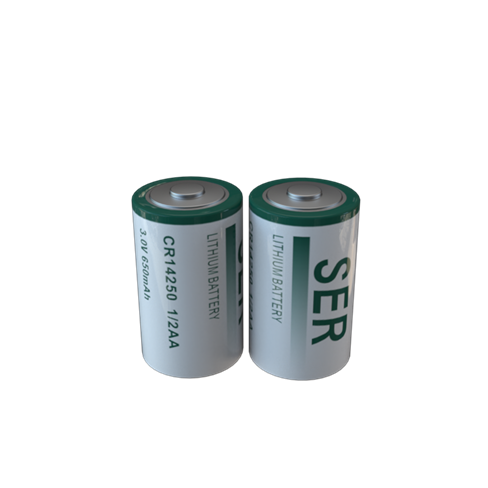

CR14250 CR14250 CR1/2AA 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery PLC Battery

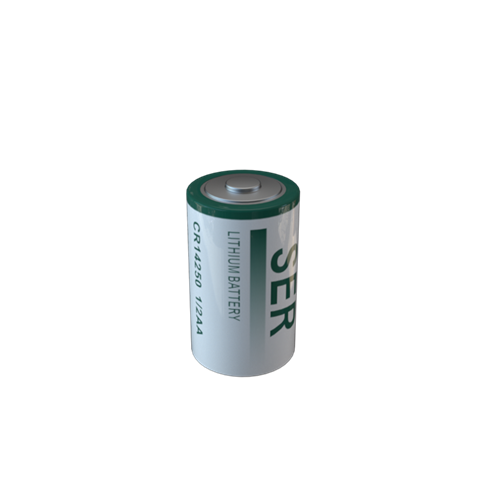

CR14250 CR14250 CR1/2AA 3.0V LiMnO2 Cylindrical Battery Primary Lithium Battery (图2)


We can add the Pin, wire and connector on the battery according to requirement
