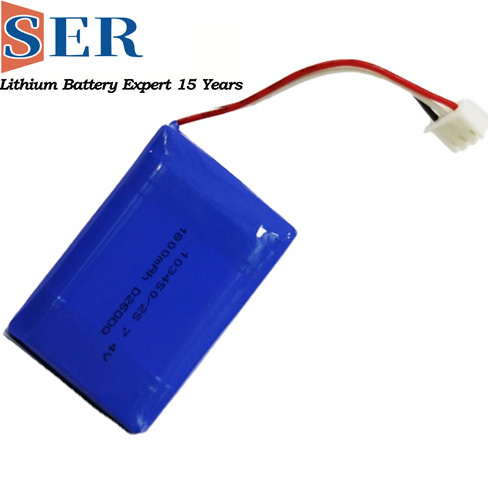

LP103450 Customize Lithium Polymer cell pack 103450 3.7V 7.4V 1800mAh Lipo batteries Lithium ion Polymer Battery manufacturer

Specification of Lithium Polymer cell packs 103450:

Specification	Parameters	Lithium Polymer cell packs 103450
Nominal	Voltage	3.7V / 7.4V
	Capacity	2000mAh @ 0.2C to 3.0 V @ 23° C
	Dimension	10.03450mm
Electrical	Constant Discharge Current	400mA
Electrical	Max Discharge Current	2000 mA,
Physical	Terminals/ Connector	Nickel Tabs, wire, plug or OEM
Others	Working Temperature	-20-65℃
	Storage Temperature	0~35℃
	Protection Functions (PCM)	Over charge, Over discharge, Over load, Short Circuit protection
High Light	LP103450 Customize Lithium Polymer cell pack 103450 3.7V 7.4V 1800mAh Lipo batteries Lithium ion Polymer Battery manufacturer
High Light

Features of lithium ion polymer battery / lipo battery / Li-polymer battery:

1. Superior Safety

2. High power, Higher discharge rate is supported.

3. Long running time

4. Lighter weight

5. Increased Flexibility

6. Energy density is high

7. Stable operating voltage;

8. Wide Operating temperature range;

9. The shape can be customized

10. Excellent discharge and charge characteristics

11. Thin thickness, We can make Lipo battery,Lithium polymer battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC, Tags, Alarm system and more applications.

Tags: LP103450, 103450, Lithium Polymer cell pack,Customize Lithium Polymer cell pack, Lipo battery,Li polymer battery pack,Lithium polymer battery,7.4V batteries,Lithium ion Polymer Battery, Lithium ion Polymer Battery manufacturer,Customize Lithium polymer battery

Ultra thin battery catalogue(图1)

Lithium ion polymer/ Lipo battery Catalogue

Model	Nominal Voltage(V)	Nominal(mAh)		Dimension(mm)			Approx. Weight (g)
Model	Nominal Voltage(V)	Typical	Mini	Thickness	Width	Height	Approx. Weight (g)
LP301230	3.7	70	60	3.5	12.5	31	1.4
LP401230	3.7	100	90	4.3	12.5	31	2
LP501429	3.7	155	130	5.3	14.5	30	3.1
LP501622	3.7	120	100	5.3	16.5	23	2.4
LP801622	3.7	200	180	8.3	16.5	23	4
LP351745	3.7	200	180	3.8	17.5	46	4
LP501745	3.7	350	310	5.3	17.5	46	7
LP402024	3.7	165	150	4.3	20.5	25	3.3
LP452024	3.7	180	170	4.8	20.5	25	6.4
LP602024	3.7	210	190	6	20	25	4.5
LP302030	3.7	130	110	3.5	20.5	31	2.6
LP352030	3.7	160	140	3.8	20.5	31	3.2
LP502030	3.7	250	230	5.3	20.5	31	5
LP602030	3.7	300	280	6.3	20.5	31	6
LP702030	3.7	350	320	7.3	20.5	31	7
LP402035	3.7	230	210	4.3	20.5	36	4.6
LP402040	3.7	270	250	4.3	20.5	41	5.4
LP602040	3.7	450	420	6.3	20.5	41	9
LP552530	3.7	380	360	5.8	25.5	31	8
LP402535	3.7	320	300	4.3	25.5	36	6
LP542730	3.7	380	350	5.7	27.5	31	7.6
LP403026	3.7	260	220	4.3	30.5	27	5.2
LP663448	3.7	1050	950	6.9	34.5	49	21
LP753448	3.7	1350	1250	7.8	34.5	49	27
LP323450	3.7	550	500	3.5	34.5	51	11
LP383450	3.7	720	670	4.1	34.5	51	14.4
LP423450	3.7	660	610	4.2	34	50	13.5
LP503450	3.7	1000	900	5.3	34.5	51	20
LP603450	3.7	1000	950	6.3	34.5	51	20
LP903450	3.7	1500	1450	9.3	34.5	51	31
LP953450	3.7	1800	1700	9.8	34.5	51	36
LP103450	3.7	1850	1750	10.3	34.5	51	37
LP243454	3.7	350	330	3.5	34.5	55	7
LP603455	3.7	1200	1100	6	34	55	24
LP803466	3.7	1900	1800	8.3	34.5	67	38
LP703480	3.7	2100	2000	7.3	34.5	81	42
LP383560	3.7	850	800	4.1	35.5	61	17
LP603560	3.7	1300	1200	6.3	35.5	61	26
LP853560	3.7	1800	1700	8.8	35.5	61	36
LP503759	3.7	1200	1100	5.3	37.5	60	24
LP583759	3.7	1350	1250	6.1	37.5	60	27
LP653759	3.7	1550	1450	6.8	37.5	60	31
LP903759	3.7	2200	2100	9.3	37.5	60	44
LP354261	3.7	800	750	3.8	42.5	62	16
LP804261	3.7	2100	2000	8.3	42.5	62	42

As a professional manufacturer in the lithium battery industry, SER Battery has a variety of lithium polymer batteriess, including

1. low-temperature lipo battery,

2. high-rate Lipo battery and

3. normal soft-pack Lipo batteries.

Lithium ion polymer/ Lipo battery Applications:

Main applications:

The Best Choice for the Following Applications

1. smart mobile phone,electronic products, GPS,GPRSNavigation.

2. PSP,PDP,Learning machine,battery hair straightener

3. miner’s lamp,digital products. Portable electric ,Music box

4. hair dryer,robot vacumm cleaner,wireless video doorbells

5. Massager, eyelash curler, Notebook, PDA, portable fax and printer;

6. Tablet pc, Modality equipment: Digital camera, DV, mobile DVD

Company Advantage



With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month.	Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company.	Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service.


Efficient and innovative R & D team helps the company lead in product design and superior performance	While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities.	For many years, the professional SER team has focused on the lithium battery industry, and has taken every product as a work of art with firmness, steadiness and excellence.

Product Advantage
1. Full range of battery categories 17 years of development, SER have the ability to offer many product categories:Lisocl2 Battery, LiMNO2 battery, LiPO battery and LiFePO4 batteries.	2. Safety The perfect protection IC has been used, undervoltage, short-circuit, overload, backflow,and we have carried out strict inspections and external tests, make sure no quality problems in the hands of customer.	3. Excellent and stable performance Strict control for cleanliness in dust-free workshop from IQC,IPQC to OQC, we control every step strictly CE, UL, SGS, FCC,ROHS and ISO9001: 2000 certified.

4. OEM & ODM Ability Professional engineers have rich experien ce in OEM& ODM. The independent labs have many sophisticated machines and design softwares always guarantee our OEM &ODM projects always keep in high level.	5. Technology Our dedicated and experienced engineers team always work together to our customers from their product design to battery solution and mass production,Reduce their time cost and communication cost.	6. Delievry Fast delivery with standard package,will bring you a professional experience with long-term cooperative freight company and stable routes.
