high temperature li-socl2 battery safe battery ER34615S utility meter li battery 3.6V primary high-temperature lithium battery Lisocl2 battery pack factory

high temperature li-socl2 battery safe battery ER34615S utility meter li battery 3.6V primary high-temperature lithium battery Lisocl2 battery pack factory

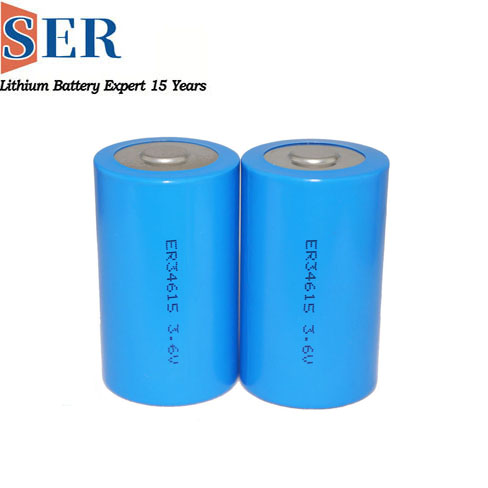

  • Model NO.:High temperature battery ER34615 S
  • Voltage:3.6V
  • Capacity:12000mAh
  • Shape:Cylinder
  • Battery Size:D size
  • Brand:SER or OEM
  • Working temperature:-40℃--150℃
  • Applications:Exploration measurement instrument (mills,oil,fields), Date reading instrument, Electronic testing equipment, Sea equipment, Navigation and aviation equipment, Military communcation equipment

Li-SOCL2 Batteries  Catalogue(图1)



 high temperature li-socl2 battery ER17335S utility meter li battery 3.6V primary high-temperature lithium battery Lisocl2 battery pack factory

Battery Features:

Title: high temperature li-socl2 battery ER34615S LiSOCL2 battery ER34615

IEC: D size

Nominal Voltage: 3.6 Volt

Max.Dimension: 34×61.5mm

Weight: 110g

Standard Current: 80 mA

Continuous Discharge Current: 200 mA

Operating Temperature(c):  -20~+150 °C

Terminate Voltage: 2.0 Volt

Available Terminations: S, T, Solder Tabs; P:Axial Pins Standard Terminations

Special Termination are aviable upon request



Related products:

ER10450S 0.5Ah      φ10.0×45.0mm

ER14250S 0.7Ah      φ14.5×25.0mm

ER14335S 1.0Ah      φ14.5×33.5mm

ER14505S 1.6Ah      φ14.5×50.5mm

ER17335S 1.7Ah      φ17.0×33.5mm

ER18505S 2.4Ah      φ18.5×50.5mm

ER26500S 4.5Ah      φ26.0×50.0mm

ER26102S 10Ah       φ26.0×102.0mm

ER34615S 12Ah       φ34.0×61.5mm

ER34127S 25Ah       φ34.0×127mm



attery high temperature,high temperature lithium thionyl chloride battery,

Main Advantages



High capacity:

The main components use imported raw materials, so that the current international process formula makes the battery reach the same level as that of Japan, Europe and the United States.


Super high temperature performance:

our company's unique special production process original high temperature lithium thionyl chloride battery can work in the environment of 150 ℃.


Long life:

Long-term production inspection and customer use tracking, the life span can reach 10 to 15 years.


Small self-discharge:

After standing at 50℃ for 1 year, the self-discharge is less than 1%.


Safety

Safety valve design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.

Safety, reliability and performance at high temperatures up to 150 °C.


Consistency:

The quality management system is established in the factory according to the ISO9001 system, and strict quality control is implemented in all production. After strict inspection and matching of capacity, internal resistance, discharge platform, self-discharge, and special temperature treatment, the battery capacity is better than Domestic similar products.



APPLICATIONS


Li-SOCL2 Batteries  Catalogue(图2)






Main applications:


In the oil & gas sector, high temperature lithium thionyl chloride battery is suitable for supplying power to logging and monitoring equipment, for example in combination with a generator.


In the field of medical devices, high temperature lithium thionyl chloride battery is suitable for wireless power supply to devices that are hot sterilized. The battery is autoclavable.


In the area of industrial plants, high temperature lithium thionyl chloride battery is suitable, for example, as an energy back-up system for actuators in safety-critical areas where high temperatures occur in the event of a disaster.


The high temperature lithium thionyl chloride battery is also suitable for the monitoring and control of safety-relevant areas or particularly hazardous areas where high ambient temperatures can occur.


such as special instruments and meters for land and offshore oil fields, and meets the technical and safety standards for military applications at home and abroad. Exploration measurement instrument (mills,oil,fields), Date reading instrument, Electronic testing equipment, Sea equipment, Navigation and aviation equipment, Military communcation equipments.


Meter & AMR (Automated Meter Reading), Utility Metering;  Medical Electronics, Memory Backup, Tracking Systems; Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices; Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring high temperature batteries.






              Company Advantage


















Li-SOCL2 Batteries  Catalogue(图6)


ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图2)
ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图3)

With three producing bases, sixteen

advanced manufacturing lines, over

1650 staff, we can produce 20000,00

primary cells and 600,000 rechargeable

battery packs per month.


Founded in 2004, Guangzhou Ser

Battery Technology Co.,Ltd is CE. UL.

SGS, IEC and ISO9001 certificated

High-tech company.


Customers' interests always goes

first,SER has a professional sales

team, shipping team and after

sales team to provide you with

the best solutions and timely service.









ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图4)
ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图5)

ER18505M Power type 3.6V A size Primary Lisocl2 Batteries Flat Top Lithium Thionyl Chloride battery(图6)

Efficient and innovative R & D team

helps the company lead in product

design and superior performance


While keeping core competitivenes,

SER also takes into account relevant

social, economic and environmental

goals, and always maintains sustained

profitability and development capabilities.


For many years, the professional
SER team has focused on the lithium
battery industry, and has taken every
product as a work of art with firmness,
steadiness and excellence.






Product Advantage

  1. Full range of battery categories

  17 years of development, SER have
  the ability to offer many product
  categories:Lisocl2 Battery, LiMNO2
  battery, LiPO battery and LiFePO4
  batteries.


  2. Safety

  The perfect protection IC has been used,
  undervoltage, short-circuit, overload,
  backflow,and we have carried out strict
  inspections and external tests, make sure
  no quality problems in the hands of
  customer.


 3. Excellent and stable performance

  Strict control for cleanliness in dust-free
  workshop from IQC,IPQC to OQC, we
  control every step strictly CE, UL, SGS,
  FCC,ROHS and ISO9001: 2000 certified.






  4. OEM & ODM Ability

  Professional engineers have rich
  experien ce in OEM& ODM. The
  independent labs have  many
  sophisticated machines and design
  softwares always guarantee our OEM
  &ODM projects always keep in
  high level.


  5. Technology

  Our dedicated and experienced engineers

  team always work together to our customers
  from their product design to battery solution
  and mass production,Reduce their time cost
  and communication cost.


  6. Delievry

  Fast delivery with standard package,will
  bring you a professional experience with
  long-term cooperative freight company
  and stable routes.


You may also interested in other lithium batteries:



LiSOCL2 battery   LiMnO2 battery  Ultra thin battery  Lipo battery LiFePO4 batteries  Portable power station



Have not find a suitable battery for your prototype?


Li-SOCL2 Batteries  Catalogue(图4)

Let's talk about what SER experience can do for you!
